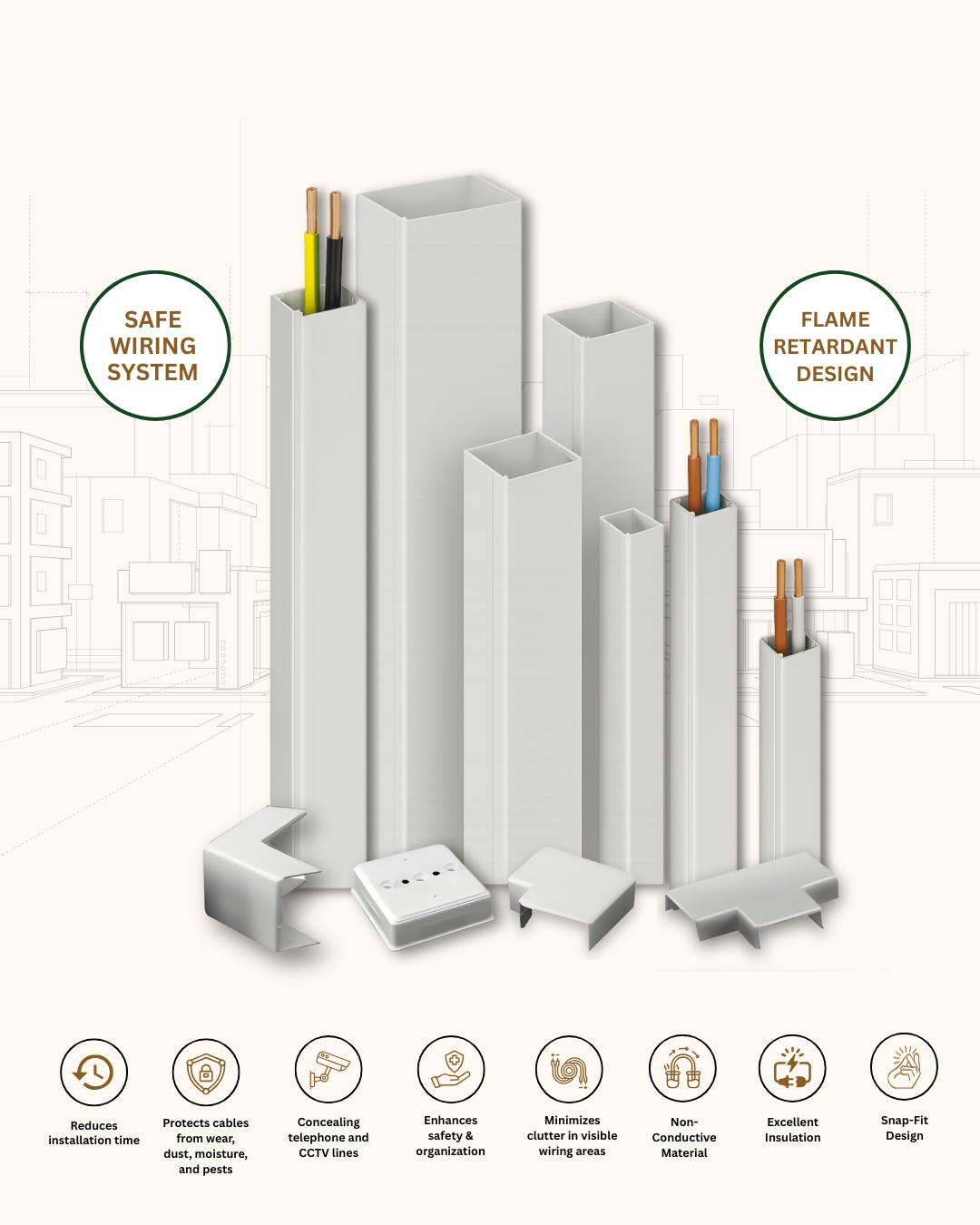

PVC Trunking & Trunklinks

PVC Trunking & Trunklinks are durable cable management solutions designed to protect, route, and organize electrical wiring in residential, commercial, and industrial installations. Manufactured from high-grade, flame-retardant PVC, these trunking systems ensure safety, neatness, and long service life while simplifying future maintenance and upgrades. Available in various sizes and profiles, they provide an aesthetically clean finish to open electrical networks.

Key Features

  • High-Quality PVC Construction: Built from impact-resistant PVC, providing excellent durability against moisture and chemicals.

  • Flame Retardant: Ensures safe containment of wiring and minimizes fire risk during electrical faults.

  • Smooth Inner Surface: Allows easy cable pulling and smooth installation without damage.

  • UV & Corrosion Resistant: Withstands harsh environments, ideal for long-term indoor and outdoor use.

  • Snap-Fit Design: Secure closure mechanism for quick installation and easy maintenance access.

  • Excellent Insulation: Prevents electrical leakage and short circuits, ensuring maximum safety.

  • Aesthetic Appearance: Gives interiors a neat, organized, and professional finish with concealed wiring.

  • Non-Conductive Material: Safe for electrical applications, offering reliable insulation and user protection.

Why Choose PVC Trunklinks?

With reinforced design, aesthetic finishes, and reliable safety features, PVC Trunklinks are a cost-effective and long-lasting solution for modern electrical management systems.

Advantages

  • Reduces installation time
  • Protects cables from wear, dust, moisture, and pests
  • Easy future expansion and maintenance
  • Enhances safety & organization
  • Minimizes clutter in visible wiring areas
Mechanical Properties

  • Tensile Strength: 390–420 kg/cm² (Ref: ASTM D638)
  • Specific Gravity: 1.3–1.4 (ASTM D792)
  • Hardness: 70–75 D (Duro) (ASTM D2240)

Thermal Properties

  • Working Temp.: 60°C – 65°C
  • Flammability: UL 94V-0
  • Burning Rate: Self extinguishing (ASTM D635)
  • Flame Die Out Time: Less than 30 seconds

Chemical Properties

  • Water Absorption: 0.10–0.25% weight in 24 hrs. (ASTM D150)
  • Effect of Acid & Alkalis: Highly resistant (ASTM D543)

Electrical Properties

  • Dielectric Constant: 1.7–3.00 (ASTM D150)
  • Insulation Resistance: More than 100 megaohms
  • Electric Strength: No breakdown at 2 KV × 50 Hz for 15 minutes

Applications:​

Reduces installation time
Protects cables from wear, dust, moisture, and pests
Concealing telephone and CCTV lines
Enhances safety & organization
Minimizes clutter in visible wiring areas
Non-Conductive Material
Excellent Insulation
Snap-Fit Design

PVC Trunking & Trunklinks Pipes

Material: Flame-retardant, non-conductive PVC
Temperature Resistance: Up to 60°C
Surface Finish: Smooth inner surface
Design: Snap-fit, UV & corrosion resistant

Quote Now

PVC Trunking & Trunklinks Fittings

Coupler: 20×12, 25×12, 32×12
External Bend: 20×12, 25×12, 32×12
Internal Bend: 20×12, 25×12, 32×12
3 Way Tee: 20×12, 25×12, 32×12
Elbow: 20×12, 25×12, 32×12
Junction Linkers: 75×75
